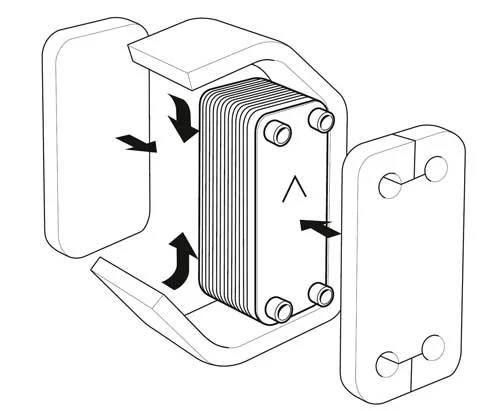

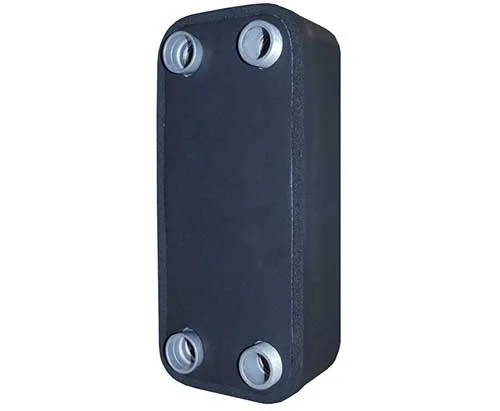

Insulation for refrigeration applications

This product sheet describes our insulation for refrigeration applications

SWEP quality standard

SWEP REF insulation are produced according to SWEP’s specifications, by selected suppliers. The high-quality materials are carefully chosen for compatibility. Accurate dimensions save you time and money on installation. SWEP accessories ensure that everything will fit and perform as intended by the design engineers.

Technical specifications

Find size, technical data and material options in the tables below.

Dimensions

Size	5/5T	8T	10/10T	12	15
Max NP	60	60	140	140	50

Size	16/26	25/25T	28/80	35	45
Max NP	140	140	140	250	250

Size	50	200/200T	56	57	D58
Max NP	280	250	280	280	190

Size	60	65	400/400T	427	649/439/500T
Max NP	60	370	230	280	400

Technical data

Min working temperature	-40°C
Max working temperature	105°C
Fire resistance	B1, Tr1, Q2 (ÖNORM B3800)
Thickness	20 mm

Material

Insulation:

NBR Foam

Thermal conductivity

0°C	0.036 W / m, K
10°C	0.037 W / m, K
50°C	0.040 W / m, K

Download product sheet

The product sheet shows a pressure example of our most popular model, specified in the footer of the sheet. For other pressure ranges, contact us
