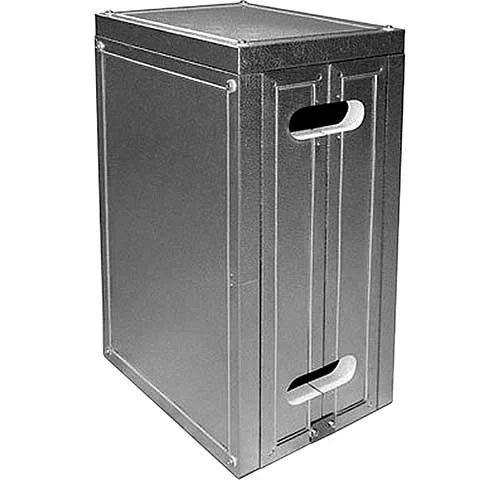

PU50 insulation boxes for heating applications

SWEP quality standard

SWEP PU 50 are produced according to SWEP’s specifications, by selected suppliers. The high-quality materials are carefully chosen for compatibility. Accurate dimensions save you time and money on installation. SWEP accessories ensure that everything will fit and perform as intended by the design engineers.

Technical specifications

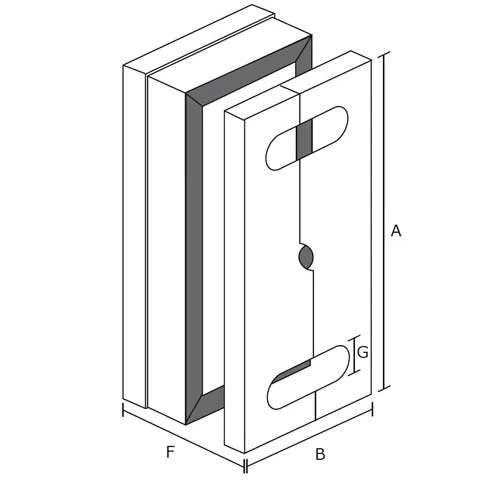

Find size, technical data and material options in the tables below.

Size	120T	50	35	57	60	65	427	439/500T	649
A mm	710	810	680	2960	660	1100	970	1190	1406
B mm	480	445	460	440	590	610	560	520	650
F mm* approx	260+2,3xNP	224+2,3xNP	232+2,3xNP	250+2,5xNP	231+2,3xNP	214+2,3xNP	199+2,3xNP	280+2,3xNP	145+2,1xNP
G mm	95	90	80	85	110	170	170	130	250
Thickness mm	50	50	50	50	50	50	50	50	50

Technical data

Max operating temperature	+150°C
Thermal conductivity	0.025 W/mK
Fire properties	B2 in accordance with DIN 4102
Color	Silver colored cover

Material

Insulation:	Rigid expanded polyurethane
Insulation cover:	Aluminium

Download product sheet

The product sheet shows a pressure example of our most popular model, specified in the footer of the sheet. For other pressure ranges, contact us.
