EPP insulation for heating applications

This insulation for heating applications consists of 2 half-shells and is made of expanded polypropylene. Due to the half-shell system, it is possible to assemble the insulation on a heat exchanger that is already installed.

SWEP quality standard

SWEP EPP insulation are produced according to SWEP’s specifications, by selected suppliers. The high-quality materials are carefully chosen for compatibility. Accurate dimensions save you time and money on installation. SWEP accessories ensure that everything will fit and perform as intended by the design engineers.

Technical specifications

Find size, technical data, and material options in the tables below.

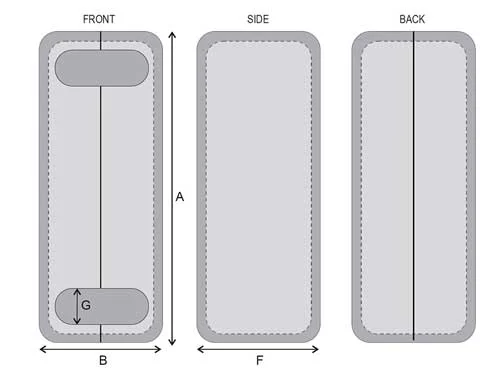

Size	5T	8T	15	10T/12	16/26	25T/28/80
NoP	20/40	20/30/40	20/40	20/40/60/80	40/60/80/100	20/30/40/60/ 80/100
A mm	252	376	524	350	437	587
B mm	136	136	132	179	179	179
F mm	117/163	117/140/163	118/163	121/168/ 215/263	160/206/ 250/296	118/137/165/ 212/260/306
G mm	40	40	40	50	50	50
Thickness mm	29	29	29	29	29	29

Technical data

Max operating temperature	+110°C
Thermal conductivity	0.035 W/mK
Fire properties	B2 in accordance with DIN4102
Material	Expanded Polypropylene
Specific gravity	40 kg/m³

Download product sheet

The product sheet shows a pressure example of our most popular model, specified in the footer of the sheet. For other pressure ranges, contact us
