SWEP screw on welding connection

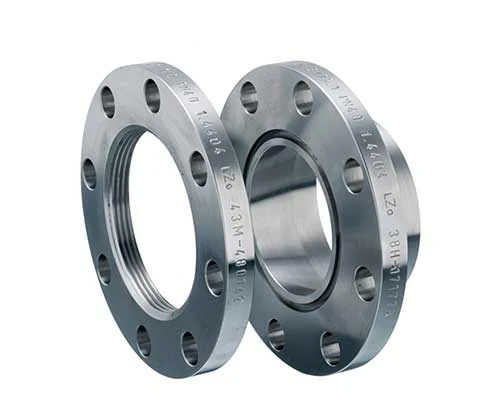

SWEP screw-on flanges are used to convert ISO-G thread connections to weld neck compac flanges.
The threaded part is easily assembled to the ISO-G connection on the BPHE and the counter flange is welded to the pipe.
SWEP quality standard
SWEP screw on flanges are produced according to SWEP’s specifications, by selected suppliers. The high-quality materials are carefully chosen for compatibility. Accurate dimensions save you time and money on installation. SWEP accessories ensure that everything will fit and perform as intended by the design engineers.
Technical specifications
Find size, technical data and material options in the tables below.
| Size | A (mm) | B (mm) | C | D (mm) | E | F (mm) | G (mm) | N |
|---|---|---|---|---|---|---|---|---|
| 2" | 12 | 37 | DN50 | 39,0 | G2" | 91 | 112 | 8 |
| 2 1/2" | 12 | 37 | DN65 | 60,0 | G2 1/2" | 106 | 125 | 8 |
Technical data
| Max working temperature | 200°C |
| Min working temperature | -15°C |
| Max working pressure | 40 bar |
Material options
| Stainless steel: | 1.4404 alt. 1.4571 |
| Carbon steel: | C22.8 |
Download product sheet
The product sheet shows a pressure example of our most popular model, specified in the footer of the sheet. For other pressure ranges, contact us
-
