SWEP support legs

Stud bolt mounted support legs

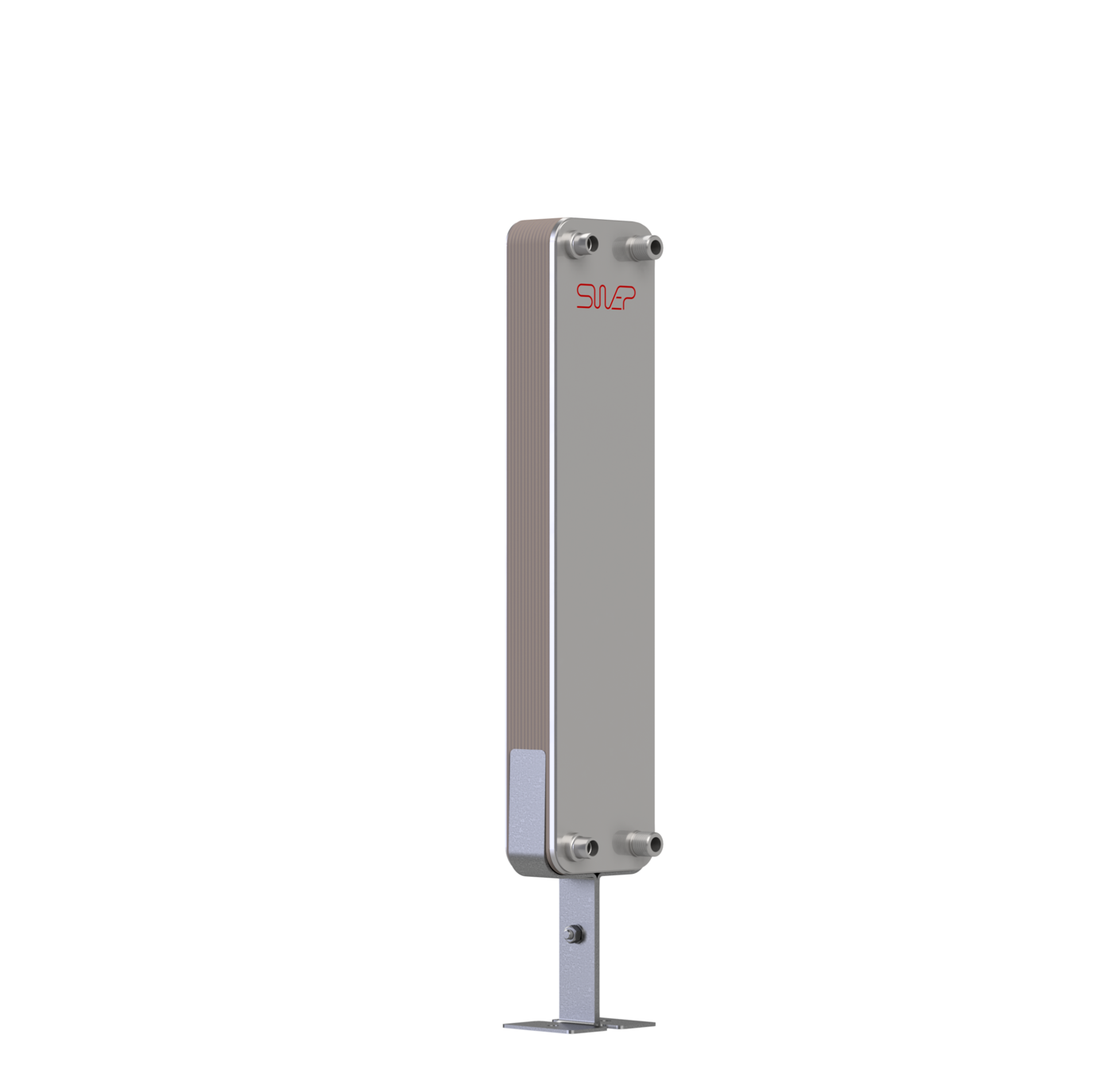

For larger brazed plate heat exchanger models SWEP offer support legs that are mounted on stud bolts.

Stud bolt free support legs

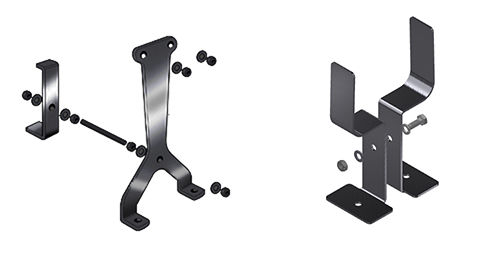

For medium sized brazed plate heat exchanger models SWEP offer support legs that are mounted directly against the heat exchanger and does not require stud bolts.

SWEP quality standard

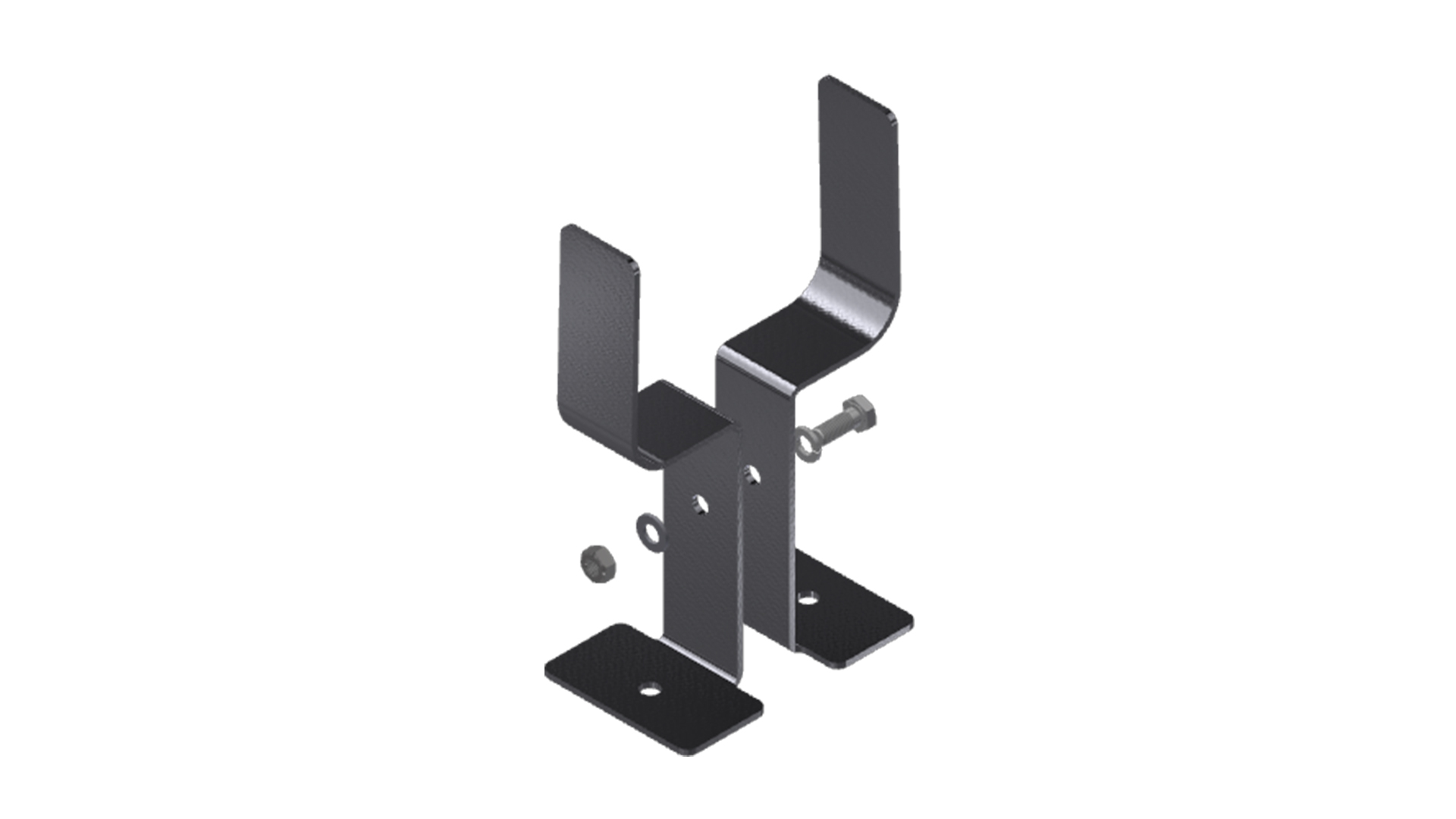

For medium sized Brazed Plate Heat Exchanger models SWEP offers single and double support legs that are mounted directly against the heat exchanger and does not require stud bolts. The heat exchanger is placed within the fork shaped bracket and is stabilized through friction. Those support leg is also compatible with a SWEP refrigerant insulation.

Technical specifications

Find size, technical data and material options in the tables below.

Size	35/35T	120T/200T/ 220/ 320	250AS	427	439	633	649
A (mm)	320	386	433	383	285	206	206
B (mm)	271	271	271	270	319	400	400
C (mm)	179	179	178	150	110	76	76

Size	10T/10TS/12/16/25T/26/28/80/ 80AS/80S/85/85AS/85S/86		16DW/18
NoP	20-80	80-160	20-80	80-140
Quantity	1	2	1	2
A (mm)	225	225	225	225
B (mm)	122	122	124	124
C (mm)	125	125	124	124
F (mm)	80	160	80	160

Download product sheet

The product sheet shows a pressure example of our most popular model, specified in the footer of the sheet. For other pressure ranges, contact us

Single support leg EN

Download PDF
Double support leg EN

Download PDF
