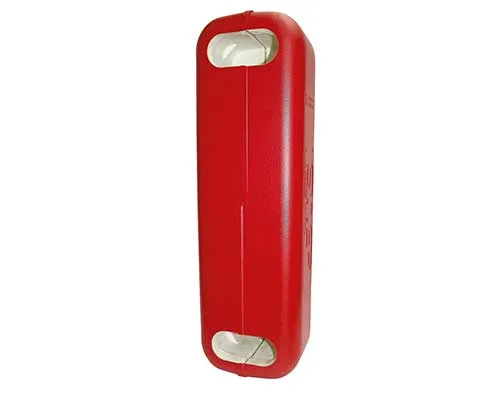

HVAC insulation boxes for heating applications

This product sheet describes our HVAC insulation boxes for heating applications.

SWEP quality standard

SWEP HVAC insulation are produced according to SWEP’s specifications, by selected suppliers. The high-quality materials are carefully chosen for compatibility. Accurate dimensions save you time and money on installation. SWEP accessories ensure that everything will fit and perform as intended by the design engineers.

Technical specifications

Find size, technical data and material options in the tables below.

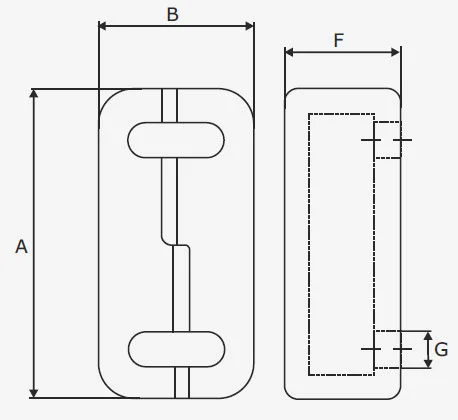

Size	5T	8T	10T/12	15	16/26	25T/28/80
A (mm)	246	386	356	530	452	594
B (mm)	119	127	181	126	185	182
F (mm)* approx.	66+2.2×NoP	77+2.24×NoP	72+2.24×NoP	66+2.5×NoP	85+2.25×NoP	84,3+2,4×NoP
G (mm)	35	35	50	35	45	50
Thickness (mm)	20	25	30	25	25	30

Size	35	50/56/120T/200T	65	427
A (mm)	495	627	1073	850
B (mm)	330	330	500	418
F (mm)* approx.	105,1+2,4×NoP	105,1+2,4×NoP	178+2,4×NoP	154,5+2,3×NoP
G (mm)	68	85	123	173
Thickness (mm)	40	40	60	60

Technical Data

Max operating temperature	130°C
Color	Red
Thermal conductivity	0.032 W/mK
Fire properties	B2 in accordance with DIN4102 T2
Insulation material	Rigid expanded polyurethane
Cover material	Polystyrene 475K
