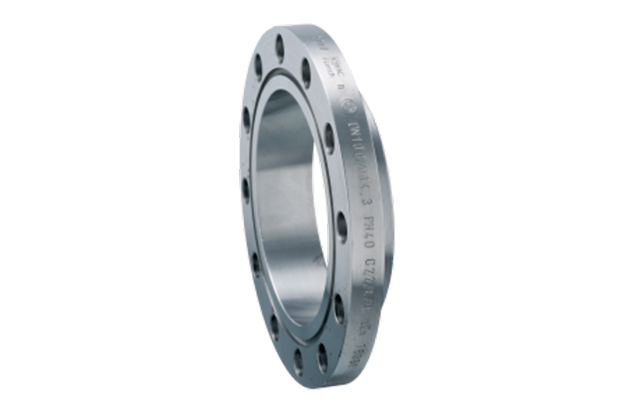

Compact counter flanges for connecting to our brazed plate heat exchangers

SWEP Compact counter flange is welded to the pipe and connected to the flange connection on the BPHE.

SWEP quality standard

SWEP compact counter flanges are produced according to SWEP’s specifications, by selected suppliers. The high-quality materials are carefully chosen for compatibility. Accurate dimensions save you time and money on installation. SWEP accessories ensure that everything will fit and perform as intended by the design engineers.

Technical specifications

Find size, technical data and material options in the tables below.

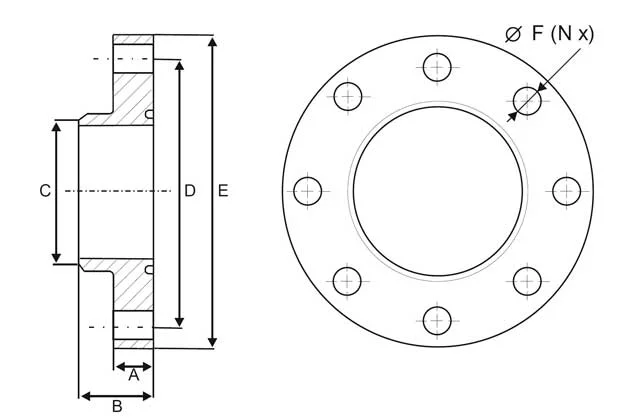

Size	A (mm)	B (mm)	C (mm)	D (mm)	E	Ø F (mm)
DN20C	10	20	26,9	53	71	11
DN25C	10	20	33,7	63	84	13
DN50C	12	24	60,3	91	112	13
DN65C	12	24	76,1	106	125	13
DN80C	15	30	88,9	118	141	13
DN100C	15	30	114,3	144	165	13
DN150C	22	44	168,3	217	250	21

Technical data (According properties of SWEP gasket)

Max working temperature	200°C
Min working temperature	-15°C
Max working pressure	40 bar

Material Options

Stainless steel:	1.4404 alt. 1.4571
Carbon steel:	C22.8

Download product sheet

The product sheet shows a pressure example of our most popular model, specified in the footer of the sheet. For other pressure ranges, contact us
