SWEP wall clamps

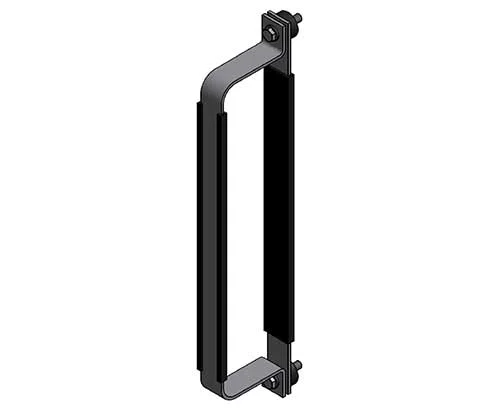

SWEP wall-mounting clamps make it possible to mount a BPHE on a wall, plate, or other surface, regardless of the plate pack (PP). Please note that A and B dimensions are not the same as the dimensions of the BPHE.

SWEP quality standard

SWEP wall mounting clamp are produced according to SWEP’s specification by selected suppliers. The high-quality materials are carefully chosen for compatibility. Accurate dimensions save you time and money on installation. SWEP accessories ensure that everything will fit and perform as intended by the design engineers.

Technical specifications

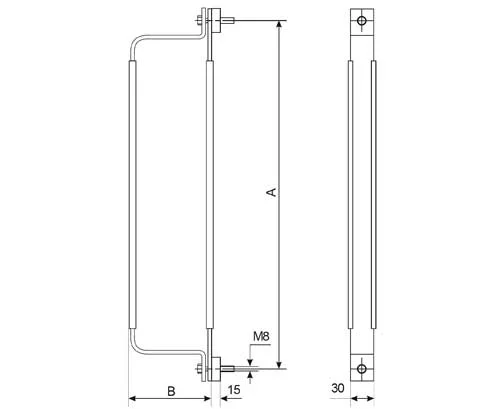

Find size, technical data and material options in the tables below.

Unit_type	A	B
5T	219	90
8T	342	90
10T,_12	319	135
15	496	90
16	408	139
25T,_28	554	135
35	422	259
56,_120T	554	259

Number of plates	Mounting assemblies required
0 – 60	1 Assembly
61 – 120	2 Assemblies
121 – 180	3 Assemblies
181 – 240	4 Assemblies
241 – 300	5 Assemblies

Material

Steel plate, rubber gasket

Download product sheet

The product sheet shows a pressure example of our most popular model, specified in the footer of the sheet. For other pressure ranges, contact us
