Economizers
Improving COP in cooler systems
An economizer is a type of subcooler that uses part of the total refrigerant flow from the condenser to cool the rest of the refrigerant flow. The evaporated refrigerant then enters the compressor at an intermediate pressure level. The cold gas from the economizer can also be used to provide extra cooling for the compressor.
Economizer system

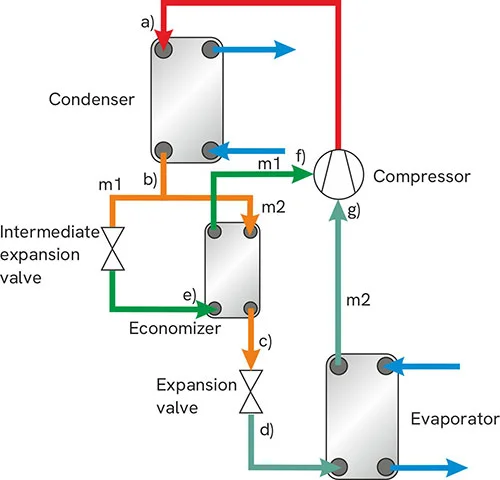

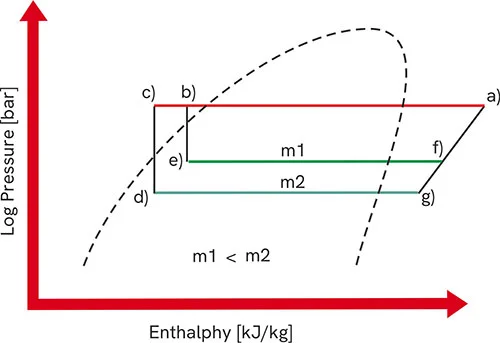

An economizer system and a log P/h diagram. The refrigerant flow is divided after point (b). The smaller flow (m1) is evaporated at an intermediate pressure to cool the main flow (m2). The cold intermediate gas (f) enters the compressor in a special economizer port.

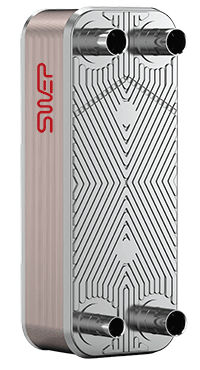

SWEP products that work as economizers
SWEP economizers improve the COP of the system by increasing subcooling from the economizer unit.
For more specific options use our selection software.
DIMENSIONING SOFTWARE
Use DThermX for the optimal BPHE design
SWEP DThermX dimensioning software makes it easy to select the optimal heat exchanger for your application. Simply input your design parameters, and the software will calculate the best options for you.
Improved online functionality
- New and improved design tools
- Three calculation modes – design, performance, and rating
- Fast calculations that can easily be saved and shared
- Full online availability, with no need for download
- Available in several languages
- Interactive start page with latest news and updates
- Quick access to Xreference – an online tool for SWEP replacement products
